Solid Copper Balls 99%CU

1mm-60mm

Quantity

Contact Now

Product Display

99% Cu copper balls nearly pure copper balls, they show good mechanical and corrosion resistance properties, excellent thermal and electric conductivity.
Small amounts of alloying elements as Cr, Zr, Ag, Cd, Mg, Sn allow to improve the mechanical properties.

Copper balls are used in galvanic applications and in the field of electronic industry.

Copper balls have good corrosion resistance in marine and industrial atmospheres, steam, alkali, neutral saline solutions. They do not resist in contact with oxidizing acids, halogens, sulphides, ammonia, sea water.

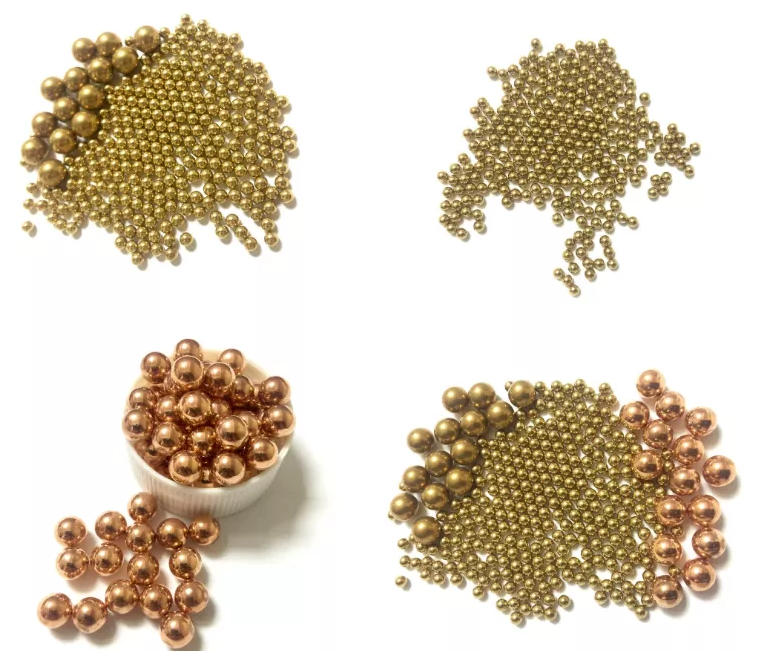

solid copper ball

Product Parameters

99%Cu Copper Balls
Material	T2 C1100 C11000
Size Range	1mm-60mm
Grade	G100 G200 G500 G1000 G2000
Hardness	HV40-120
Features	(1)corrosion resistance (2)excellent ability to conduct both heat and electricity.
Application	99% Pure Copper Ball mainly used in kinds of electric accessories,switch,carburetor.The ball is soft so it is easy to be drilled,then usually used in valve , fuel injectors, sprayers,pressure gauges,water meter ,transmission system,jewelly,bracelet,earrings,necklaces,touch-spot and art ware.
Packing	1.export carton in wooden case;the carton size:302015CM wooden case:908070CM. 2.250kg per metal drum+pallet
Chemical composition
Copper balls	Cu	Pb	P	Fe	Zn	So	Bi
	99.7-99.9%	0.005%	-	0.01%	0.005%	0.002%	0.002%

Grade:G10 to G1000
Grade	Ball diameter variation	Deviation from spherical from	Surface roughness	Lot diameter variation	Nominal ball deviation tolerance
	Vdws	△Sph	Ra	Vdwl	Tdn
	not over
	μm
10	0.25	0.25	0.025	0.5	*
16	0.4	0.4	0.032	0.8	*
20	0.5	0.5	0.05	1	*
28	0.7	0.7	0.05	1.5	*
40	1.0	1.0	0.08	2	*
60	1.5	1.5	0.10	3	*
100	2.5	2.5	0.125	5	±12.5
200	5	5	0.5	10	±25
500	13	13	*	25	±50
1000	25	25	*	50	±125

Packing

Weighing--Sealing--Packing box--Labelling--Packing carton--Firming
