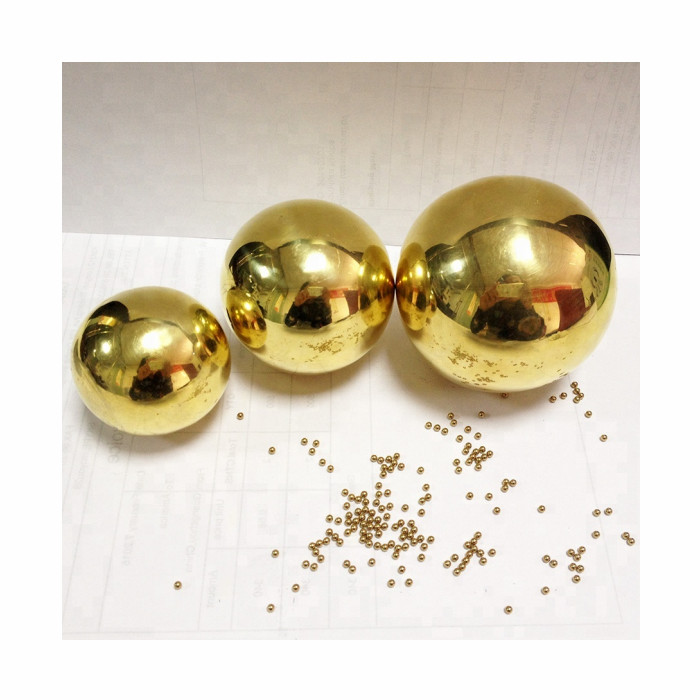

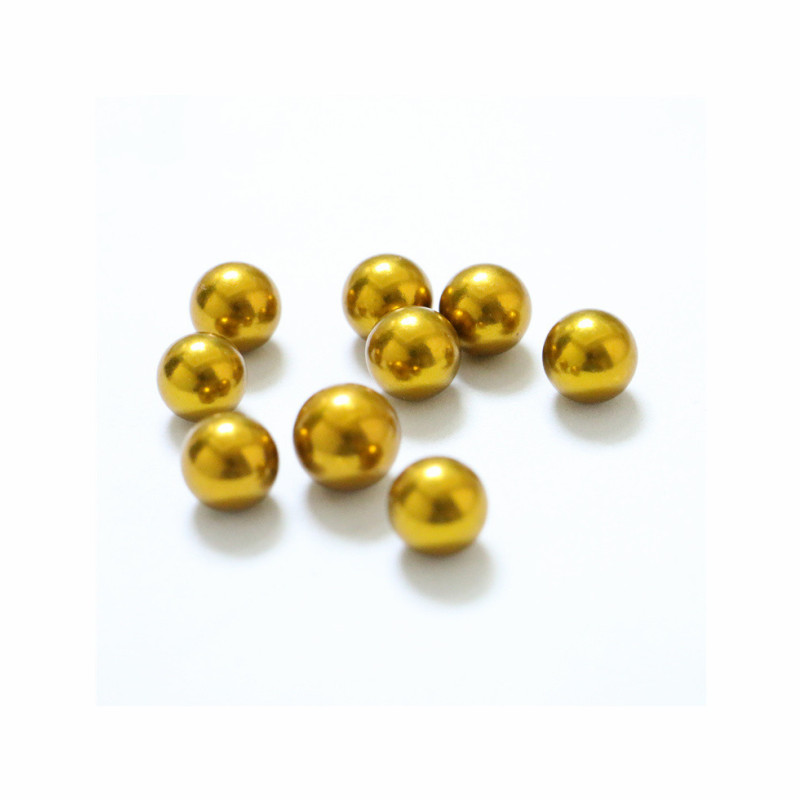

H62 H65 Brass Balls

1mm-50.8mm H62/H65

Quantity

Contact Now

Product Display

Brass is a non-ferrous material. Brass balls provide excellent resistance to corrosion by water. Brass balls are resistant to corrosion caused by ambient air and seawater. Brass ball is resistant to the corrosion of petroleum products and alcohol, but may be unstable in acids and bases. Brass ball shows excellent conductivity, making it a popular material in the electronic field.

Product Parameters

H62 H65 Brass Balls
Material	H62/H65
Size Range	1mm-50.8mm
Grade	G100-G1000
Hardness	HRC:15
Features	Brass balls show fairish mechanical performance, good corrosion resitance, excellent electrical properties. They generate low frictions. Balls are provided in the passivated condition.
Application	Special valves, industrial pumps and valves, electronic devices, safety switches, heating units, appliances, furniture rails. They are used in the automotive, electronic and petrolchemical industry.
Packing	1.export carton in wooden case;the carton size:302015CM wooden case:908070CM. 2.250kg per metal drum+pallet
Chemical composition
H62 H65 Brass Balls	Cu	Pb	P	Fe	Zn	So	Bi
	60.5-63.5%	0.08%	0.01%	0.15%	Margin	0.002%	0.005%

Grade:G10 to G1000
Grade	Ball diameter variation	Deviation from spherical from	Surface roughness	Lot diameter variation	Nominal ball deviation tolerance
	Vdws	△Sph	Ra	Vdwl	Tdn
	not over
	μm
10	0.25	0.25	0.025	0.5	*
16	0.4	0.4	0.032	0.8	*
20	0.5	0.5	0.05	1	*
28	0.7	0.7	0.05	1.5	*
40	1.0	1.0	0.08	2	*
60	1.5	1.5	0.10	3	*
100	2.5	2.5	0.125	5	±12.5
200	5	5	0.5	10	±25
500	13	13	*	25	±50
1000	25	25	*	50	±125

Packing

Weighing--Sealing--Packing box--Labelling--Packing carton--Firming
