Hollow Copper Balls

0.8mm-50.8mm

Quantity

Contact Now

Product Display

Hollow Copper Ball, a hollow spherical object crafted from pure copper, boasts remarkable electrical and thermal conductivity, making it a sought-after choice across various sectors. With its outstanding ductility, workability, and chemical stability, Hollow Copper Ball stands out among materials. Hollow Copper Ball widely employed in electrical engineering, electronics, and aerospace, Hollow Copper Ball delivers cost-effective solutions with minimal maintenance expenses. Hollow Copper Ball is recyclable and safe for human interaction, it's perfect for medical equipment. Customizable for intricate designs, Hollow Copper Ball excels in high-temperature environments and thermal conductivity, making it optimal for heat exchange devices.

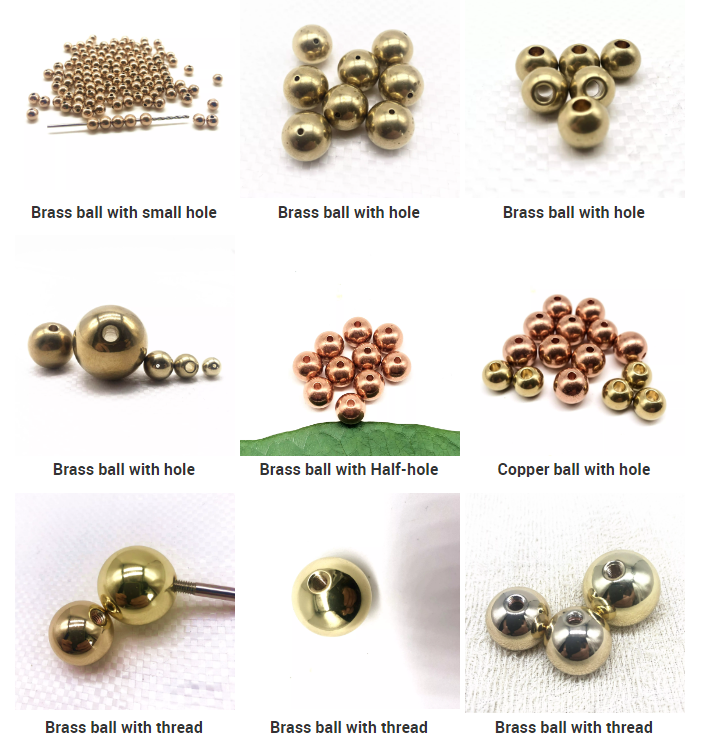

The ball can be drilled, threaded, plated, etc.

Product Parameters

Hollow Brass/Copper Balls
Material	Brass ball/copper ball
Size Range	1mm-60mm
OEM	Thread,Drill hole
Grade	G100 G200 G500 G1000 G2000
Surface treatment	Electroplat、high polish
Packing	1.export carton in wooden case;the carton size:302015CM wooden case:908070CM. 2.250kg per metal drum+pallet

Grade:G10 to G1000
Grade	Ball diameter variation	Deviation from spherical from	Surface roughness	Lot diameter variation	Nominal ball deviation tolerance
	Vdws	△Sph	Ra	Vdwl	Tdn
	not over
	μm
10	0.25	0.25	0.025	0.5	*
16	0.4	0.4	0.032	0.8	*
20	0.5	0.5	0.05	1	*
28	0.7	0.7	0.05	1.5	*
40	1.0	1.0	0.08	2	*
60	1.5	1.5	0.10	3	*
100	2.5	2.5	0.125	5	±12.5
200	5	5	0.5	10	±25
500	13	13	*	25	±50
1000	25	25	*	50	±125

Packing

Weighing--Sealing--Packing box--Labelling--Packing carton--Firming
